Responsive Smooth Navigational Menu

Control Description

Responsive Smooth Navigational Menu jQuery multilevel menu based on CSS, the easiest way to implement user friendly navigation and responsive to optimize your site looks on mobile devices

Genexus X Evolution 3 bring us several news, among them is the creation of adaptative web aplications, according to the screen size. Due to Smooth Navigational Menu user control success, we decided to create another version with same functionality but following Genexus X Evolution 3 design guidelines.

The user control Smooth Responsive Menu is a multi-level menu and can be used to categorize links.
If you are familiar with Smooth Navigational Menu user control then you won't notice the change
 because the new user control have the same properties but follows Genexus X Evolution 3 design guidelines.

What is a responsive design?

Is a web design technique, provide an optimal visualization from the same page on several devices (smartphones, tablets, desktop computer monitors).
The web site should adapt to the device, showing the content to the user in a right way.







Compatibility

Web

Using the control

First of all, drag the control from the tool box to the web form.



The control loads a SDT containing the menu elements.
You have to create a SmoothNavMenuData SDT variable and must assign it to MenuData control property.

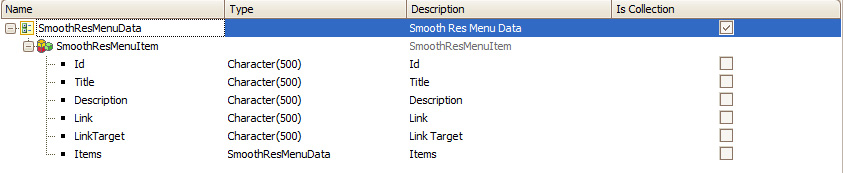

The SmoothNavMenuData SDT structure is as follows:




Basic example

// Code example to load the navigation menu
Sub 'SmoothResMenu'
           &SmoothResMenuData = SmoothResMenuDataDP.Udp()
EndSub

Event Start
            Do 'SmoothResMenu'
EndEvent



A Data Provider that returns a SmoothResMenuData SDT is included with the User Control.




Example using recursive Data Provider

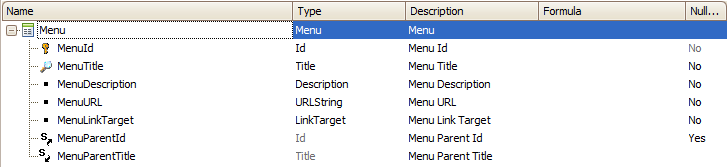

Assume you have a Menu transaction to store the menu options as follows:




After that, you can modify the Data Provider to load menu items.



//Roles:
    parm(in:&MenuParentId);
//Code:
    SmoothResMenuData
    {
        SmoothResMenuItem
        Where MenuParentId = &MenuParentId when not &MenuParentId.IsEmpty()
        Where MenuParentId.IsNull() when &MenuParentId.IsEmpty()
        {
            Id = MenuId.ToFormattedString()
            Title = MenuTitle.Trim()
            Description = MenuDescription.Trim()
            Link = MenuURL.Trim()
            Items = SmoothResMenuDataDP.Udp(MenuId)
        }
    }
//Invoque Data Provider
//Smooth Responsive Menu code example
    Sub 'SmoothResMenu'
        &SmoothResMenuData = SmoothResMenuDataDP.Udp(nullvalue(MenuId))
    EndSub



Besides, the control offers several properties to customize hoy it behaves.


Control Properties

  • Width
  • Height
  • ControlName
  • MenuData: SmoothNavMenu SDT variable.
  • SelectedItem: SmoothResMenuData.SmoothResMenuItem SDT variable.
  • Orientation: choose between horizontal or vertical.
  • NormalBackground
  • HoverBackground
  • FontHeaderColor
  • FontNormalColor
  • HeaderFontFamily, HeaderFontStyle, HeaderFontWeight, HeaderFontSize
  • NormalFontFamily, NormalFontStyle, NormalFontWeight, NormalFontSize
  • ResponsiveType: (Vertical|Horizontal) Allow to change the way the menu unfolds.
  • NotOverlap: Define if control overlaps to the rest of the elements on page.

Excecution



Demonstration

There are two ways to expand the menu, and can be changed from the user control ResponsiveType property. One of them is the vertical expand and is shown in the following video. The second way to expand is in horizontal way, the menu expands from the screen left side.

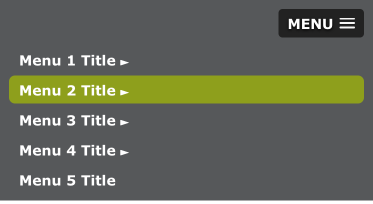

ResponsiveType = Horizontal

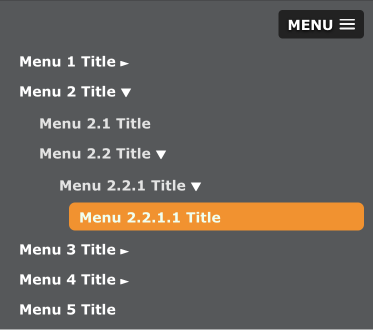

ResponsiveType = Vertical



Upgrades

  • Version 2.1.0
  • New properties to costumize font styles (HeaderFontFamily, HeaderFontStyle, HeaderFontWeight, HeaderFontSize, NormalFontFamily, NormalFontStyle, NormalFontWeight, NormalFontSize)
  • New property NotOverlap, to avoid control ovelaps to other page elements.
  • Styles improve for Genexus.Flat theme, full item highlights on navigation over it.
  • Correction of the submenu shadows that don't disappear when navigate between webcomponents.
